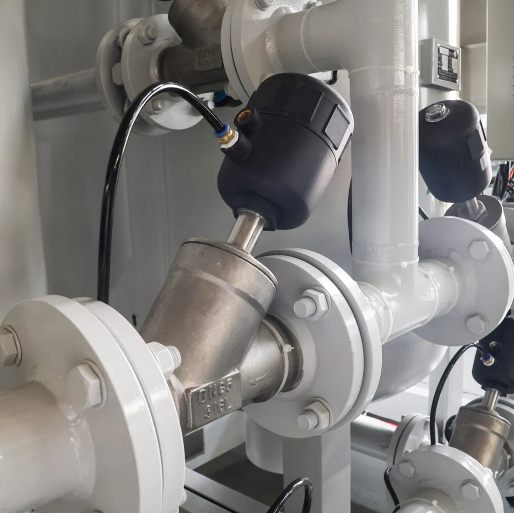

99.999% High Purity 90nm3/Hr Glass Production Psa Nitrogen Generator
What is a PSA nitrogen generator?
PSA stands for pressure swing adsorption. It is a technology that can be used to generate nitrogen or oxygen for professional purposes. First, tank A is in the adsorption phase while tank B regenerates. In the second stage both vessels equalize pressure to prepare for the switch.
Product Parameters
| PHpacity
(Nm 3 /h) | Purity
(%) | Construction | Dimensions
(mm) | Inlet& Outlet | Weight
(Kg) |
|
| 5 | 95 | Four towers | 570*450*1300 | G1/4; G1/4 | 253 |
| 99 | Four towers | 580*460*1450 | G1/4; G1/4 | 295 |
| 99.5 | Four towers | 1000*900*1200 | DN20; G1/2" | 370 |
| 99.9 | Four towers | 1000*900*1500 | DN20; G1/2" | 431 |
| 99.99 | Four towers | 1200*1100*1350 | DN20; G1/2" | 535 |
| Four towers | 1100*1050*1400 | DN20; G1/2" | 493 |
| 99.999 | Four towers | 1300*1200*1700 | DN25; G1/2" | 698 |
| Two towers | 1100*600*1600 | DN25; G1/2" | 510 |
| 10 | 95 | Four towers | 1000*900*1400 | DN20; G1/2" | 414 |
| 99 | Four towers | 1100*1050*1400 | DN20; G1/2" | 485 |
| 99.5 | Four towers | 1100*1050*1650 | DN20; G1/2" | 510 |
| 99.9 | Four towers | 1200*1150*1850 | DN20; G1/2" | 624 |
| Two towers | 1100*600*1600 | DN20; G1/2" | 451 |
| 99.99 | Four towers | 1400*1300*1600 | DN25; G1/2" | 788 |
| Two towers | 1200*650*1410 | DN25; G1/2" | 565 |
| Four towers | 1300*1250*1600 | DN25; G1/2" | 762 |
| Two towers | 1200*650*1400 | DN25; G1/2" | 552 |
| 99.999 | Four towers | 1500*1400*1850 | DN25; G1/2" | 1098 |
| Two towers | 1300*700*1850 | DN25; G1/2" | 838 |
| 15 | 95 | Four towers | 1000*900*1550 | DN20; G1/2" | 426 |
| 99 | Four towers | 1100*1050*1580 | DN20; G1/2" | 534 |
| 99.5 | Four towers | 1100*1050*1680 | DN20; G1/2" | 550 |
| 99.9 | Four towers | 1300*1200*1700 | DN25; G1/2" | 666 |
| Two towers | 1200*600*1500 | DN25; G1/2" | 468 |
| 99.99 | Four towers | 1500*1400*1650 | DN25; G1/2" | 991 |
| Two towers | 1300*750*1550 | DN25; G1/2" | 711 |
| Four towers | 1400*1300*1700 | DN25; G1/2" | 882 |
| Two towers | 1200*650*1700 | DN25; G1/2" | 650 |
| 99.999 | Four towers | 1700*1550*2050 | DN40; G1/2" | 1349 |
| Two towers | 1400*750*1960 | DN40; G1/2" | 935 |
| Four towers | 1900*1750*2150 | DN40; G1/2" | 1860 |
| Two towers | 1750*850*2150 | DN40; G1/2" | 1341 |
| 20 | 95 | Four towers | 1100*1050*1400 | DN20; G1/2" | 498 |
| 99 | Four towers | 1200*1150*1550 | DN20; G1/2" | 597 |
| 99.5 | Four towers | 1200*1150*1600 | DN20; G1/2" | 611 |
| Two towers | 1100*600*1600 | DN20; G1/2" | 435 |
| 99.9 | Four towers | 1400*1300*1650 | DN25; G1/2" | 845 |
| Two towers | 1300*650*1600 | DN25; G1/2" | 621 |
| 99.99 | Four towers | 1500*1400*2050 | DN40; G1/2" | 1192 |
| Two towers | 1300*700*1950 | DN40; G1/2" | 848 |
| Four towers | 1500*1400*1800 | DN25; G1/2" | 1059 |
| Two towers | 1300*700*1700 | DN25; G1/2" | 780 |
| 99.999 | Four towers | 1800*1650*2100 | DN40; G1/2" | 1582 |
| Two towers | 1550*800*2100 | DN40; G1/2" | 1119 |
| Four towers | 2100*1950*2160 | DN40; G1/2" | 2320 |
| Two towers | 1800*950*2160 | DN40; G1/2" | 1714 |
| 25 | 95 | Four towers | 1100*1050*1680 | DN25; G1/2" | 558 |
| 99 | Four towers | 1300*1200*1650 | DN25; G1/2" | 675 |
| Two towers | 1100*600*1650 | DN25; G1/2" | 475 |
| 99.5 | Four towers | 1300*1200*1700 | DN25; G1/2" | 687 |
| | Two towers | 1100*600*1700 | DN25; G1/2" | 478 |
| 99.9 | Four towers | 1400*1300*1850 | DN25; G1/2" | 930 |
| Two towers | 1200*600*1820 | DN25; G1/2" | 645 |
| 99.99 | Four towers | 1600*1500*2050 | DN40; G1/2" | 1323 |
| Two towers | 1450*750*1800 | DN40; G1/2" | 932 |
| Four towers | 1500*1400*2050 | DN40; G1/2" | 1217 |
| Two towers | 1300*700*1950 | DN40; G1/2" | 857 |
| 99.999 | Four towers | 1900*1750*2170 | DN40; G1/2" | 1876 |
| Two towers | 1600*850*2170 | DN40; G1/2" | 1336 |
| Four towers | 2200*2000*2460 | DN40; G1/2" | 2703 |
| Two towers | 1800*950*2060 | DN40; G1/2" | 1992 |
| 30 | 95 | Four towers | 1200*1150*1600 | DN25; G1/2" | 627 |
| Two towers | 1100*600*1450 | DN25; G1/2" | 426 |
| 99 | Four towers | 1400*1300*1500 | DN25; G1/2" | 772 |
| Two towers | 1200*650*1400 | DN25; G1/2" | 543 |
| 99.5 | Four towers | 1400*1310*1550 | DN25; G1/2" | 813 |
| Two towers | 1200*650*1450 | DN25; G1/2" | 567 |
| 99.9 | Four towers | 1500*1400*1700 | DN40; G1/2" | 1049 |
| Two towers | 1300*700*1600 | DN40; G1/2" | 751 |
| 99.99 | Four towers | 1800*1650*2000 | DN40; G1/2" | 1498 |
| Two towers | 1500*800*1900 | DN40; G1/2" | 751 |
| Four towers | 1700*1550*1980 | DN40; G1/2" | 1367 |
| Two towers | 1400*750*1980 | DN40; G1/2" | 951 |
| 99.999 | Four towers | 2000*1850*2120 | DN50; G1" | 2099 |
| Two towers | 1750*900*2110 | DN50; G1" | 1525 |
| Four towers | 2300*2100*2550 | DN40; G1" | 3090 |
| Two towers | 1900*1050*2550 | DN40; G1" | 2275 |
| 40 | 95 | Four towers | 1300*1200*1750 | DN40; G1" | 743 |
| Two towers | 1100*600*1700 | DN40; G1" | 502 |
| 99 | Four towers | 1400*1300*1900 | DN40; G1" | 968 |
| Two towers | 1200*650*1800 | DN40; G1" | 671 |
| 99.5 | Four towers | 1400*1300*1900 | DN40; G1" | 985 |
| Two towers | 1200*650*1800 | DN40; G1" | 685 |
| 99.9 | Four towers | 1700*1550*1850 | DN40; G1" | 1242 |
| Two towers | 1400*750*1750 | DN40; G1" | 868 |
| 99.99 | Four towers | 1900*1750*2100 | DN40; G1" | 1842 |
| Two towers | 1650*850*2100 | DN40; G1" | 1323 |
| Four towers | 1800*1650*2100 | DN40; G1" | 1672 |
| Two towers | 1550*800*2100 | DN40; G1" | 1178 |
| 99.999 | Four towers | 2200*2000*2400 | DN50; G1" | 2543 |
| Two towers | 1800*950*2400 | DN50; G1" | 1920 |
| Four towers | 2500*2300*2650 | DN40; G1" | 3889 |
| Two towers | 2100*1150*2650 | DN40; G1" | 2945 |
| 50 | 95 | Four towers | 1400*1300*1650 | DN40; G1" | 881 |
| Two towers | 1200*650*1550 | DN40; G1" | 617 |
| 99 | Four towers | 1500*1400*1850 | DN40; G1" | 1115 |
| Two towers | 1300*700*1800 | DN40; G1" | 790 |
| 99.5 | Four towers | 1500*1400*1900 | DN40; G1" | 1139 |
| Two towers | 1300*700*1750 | DN40; G1" | 806 |
| 99.9 | Four towers | 1750*1600*1850 | DN40; G1" | 1418 |
| Two towers | 1500*800*1750 | DN40; G1" | 1012 |
| 99.99 | Four towers | 2000*1850*2150 | DN50; G1" | 2133 |
| Two towers | 1750*900*2100 | DN50; G1" | 1557 |
| Four towers | 1900*1750*2170 | DN40; G1" | 1901 |
| Two towers | 1600*850*2170 | DN40; G1" | 1366 |
| 99.999 | Four towers | 2400*2200*2350 | DN50; G1" | 2679 |
| Two towers | 2000*1100*2350 | DN50; G1" | 2045 |
| Four towers | 2700*2450*2900 | DN50; G1" | 4415 |
| Two towers | 2200*1200*2900 | DN50; G1" | 3288 |
Advantages of PSA nitrogen generators
Quality of nitrogen gas
Nitrogen generators allow for the production of high purity nitrogen from the surrounding atmosphere, which can provide – up to 99.9995% nitrogen depending on the nitrogen generator system.
Reliability of nitrogen generator
Nitrogen generators allow for continuous operation 24/7, giving you an uninterrupted flow of gas when it's needed.
Flexibility of nitrogen gas supply
The application of the nitrogen gas can be diverse and altered at short notice. So long as the nitrogen generator can meet the flow and purity requirements of the application it can be changed from one day to the next with minimal hassle.
Low cost of ownership
By substituting out-of-date cylinder technology, on-site nitrogen production savings largely exceed 50% for a typical LC-MS application. The net cost of nitrogen produced by nitrogen generators is significantly less than the cost of bottled or liquefied nitrogen.
Long lasting nitrogen supply
On-site generators are highly resistant to vibration and shocks, chemically inert to greases and moisture insensitive. With proper, planned, in most cases annual, maintenance a generator can easily last a decade or more.
How to get a prompt quotation?
Do not hesitate to send us mail with the following data.
1) N2 flow rate: _____Nm3/hr
2) N2 purity: _____%
3) N2 discharge pressure: _____Bar
4) Voltages and Frequency: ______V/PH/HZ
5) Nitrogen Application.
6) You local Sealevel
| Packaging |
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
In addition to psa nitrogen generator, we also produce VPSA Oxygen Generators,PSA Oxygen Generators, storage tanks, heat exchangers and other products. If you are interested in psa nitrogen Systems or other products, please feel free to send an email to info@gneeheatex.com. We will be very happy to serve you.
